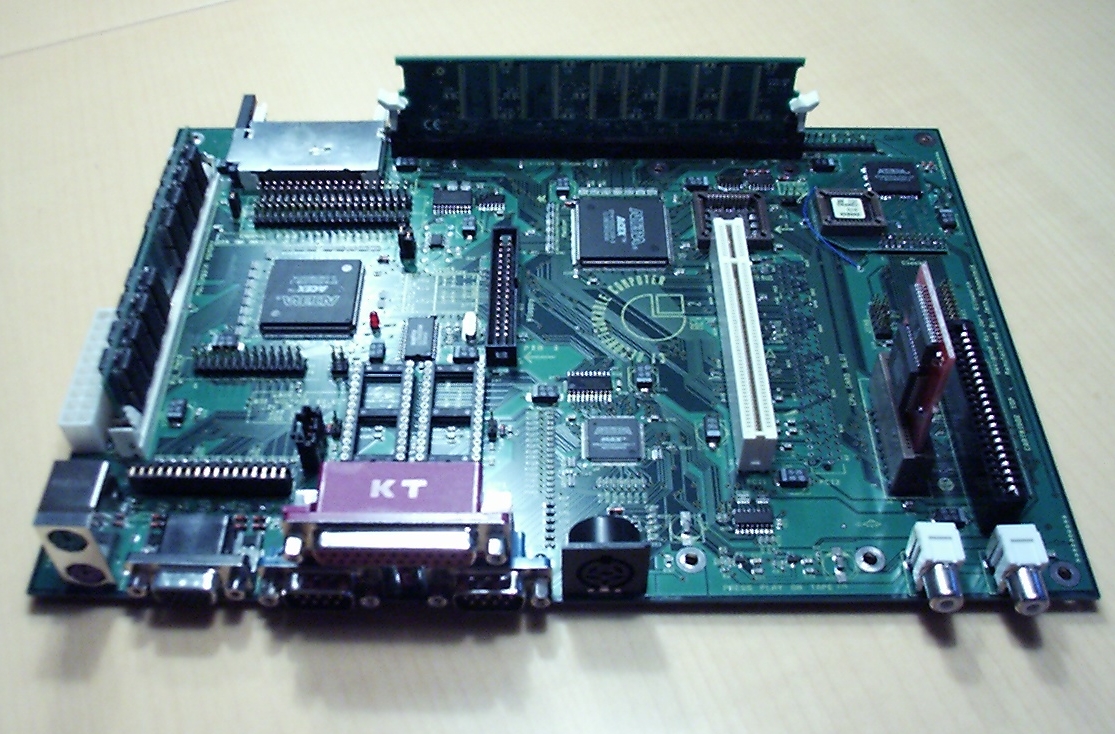

The
C1 system board equipped with 65816 CPU module, 32MB of multimedia
RAM and 128MB of system RAM. Both SID sockets are still empty.

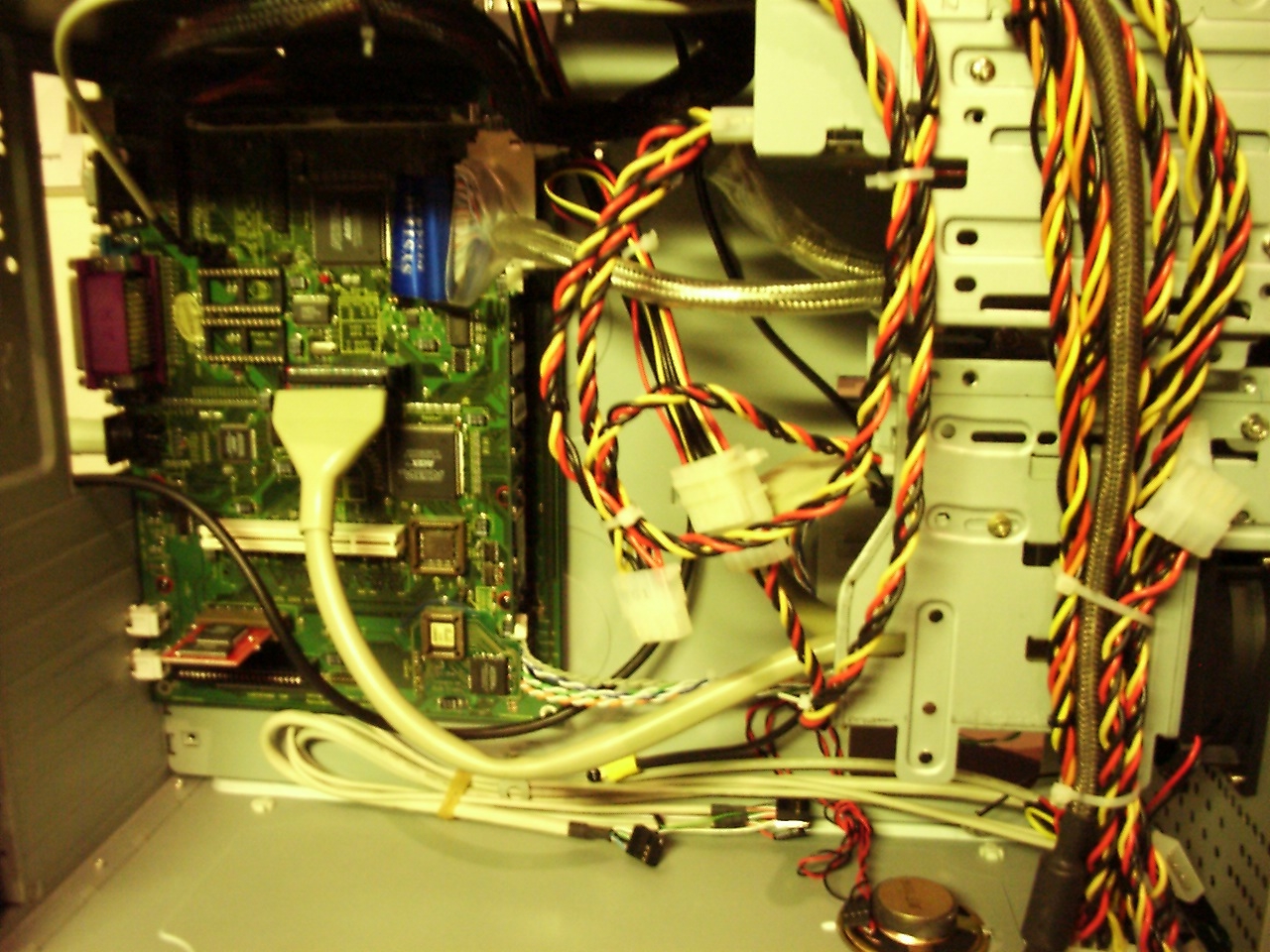

The
C1 system board already installed in a standard ATX case with standard
power supply. The PCI socket is properly aligned to the case, but
the audio connectors required some mechanical rework.

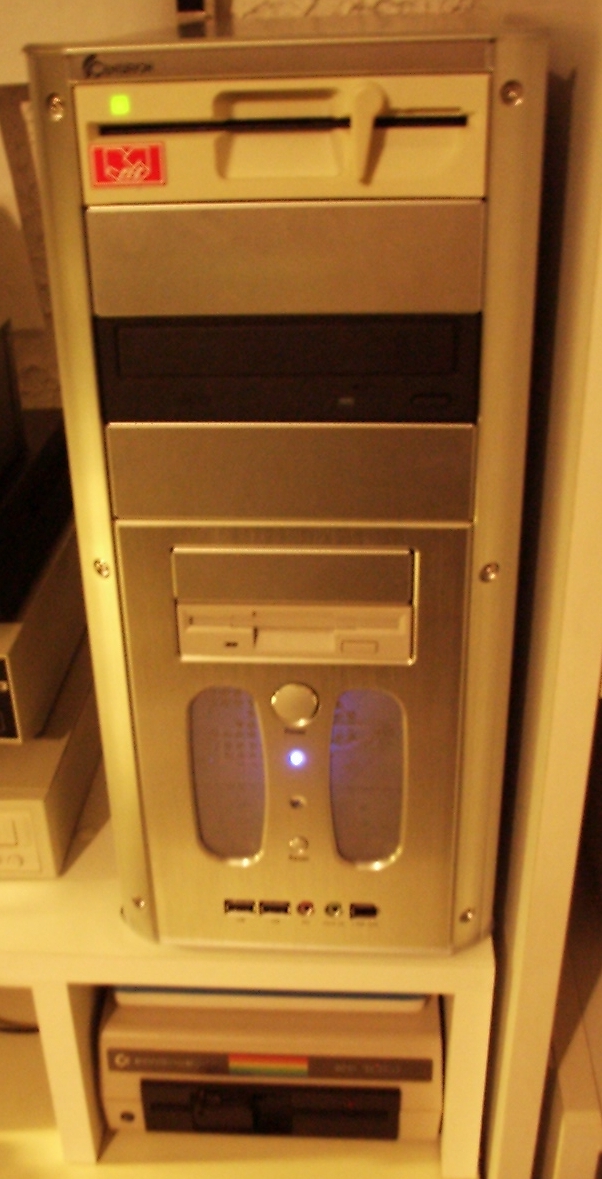

C1
ready for operation - on the top a 5,25" OC118N drive attached
to the IEC bus, in the middle a standard IDE CD-Rom for booting the
FPGA and system files. A MOS 6581 has been installed in SID socket
1.
